PD240 Pro 2 — The leak detector ensures quality on flat roofs
With the test set for dry substrates, users can quickly and effectively test non-conductive surfaces (e.g. PVC, TPO, bitumen, etc.) for pinholes, porosity, leaking seams and other leaks.
HERZ, a specialist supplier of roof welding equipment for installing roofing membranes on flat roofs, is expanding its exentive product range with the dry leak detection device PD240 Pro 2.
As the importer for Germany, HERZ offers both quality-focused roofing contractors and inspection-oriented surveyors a testing method with this innovative dry leak detection device that significantly simplifies leak detection. In addition to the traditionally used wet leak detection method - which is time-consuming and involves additional work - the simpler dry leak detection method represents the inspection system of the future.
Especially for roofing contractors who value perfect craftsmanship and insist on top-quality results in line with professional standards even when using subconstractors, the Dry Dry Pro system provides reliable quality control.
Clear in design and function and easy to use, the dry testing method enhances the roofing contractor's profile in the eyes of planners, architects, and bulding owners.
The British manaufacturer Buckleys has been offering a proven testing method based on electrical conductivity for decades to detect leaks in tank construction. Bulding on this extremely stringent quality control process used in tank construction, the principle has been adapted for leak detection on dry flat roofs. Essentially, the system uses, the conductivity of the substrate beneath the membrane (condensation I moisture on the roof surface is almoste alsways presen) to creat an "open electrical circuit".
Its grounding together with the bulding structure, the bulding connection of the detector unit (copper wire brush), and the connection to the positive pole of the detector from the electrical test circuit. When the operator moves the detector over a defective area in the membrane, the electrical circuit is closed, as the membrane at this point has reduced dielectric strength (the insulating properties of the roofing membrane are reduced or no longer present).
When the circuit is completed, the current pratically "jumps" throuh the gap to ground, triggering the alarm on the detector and alerting the operator to a defective area.
Complete testing system, easy to operate

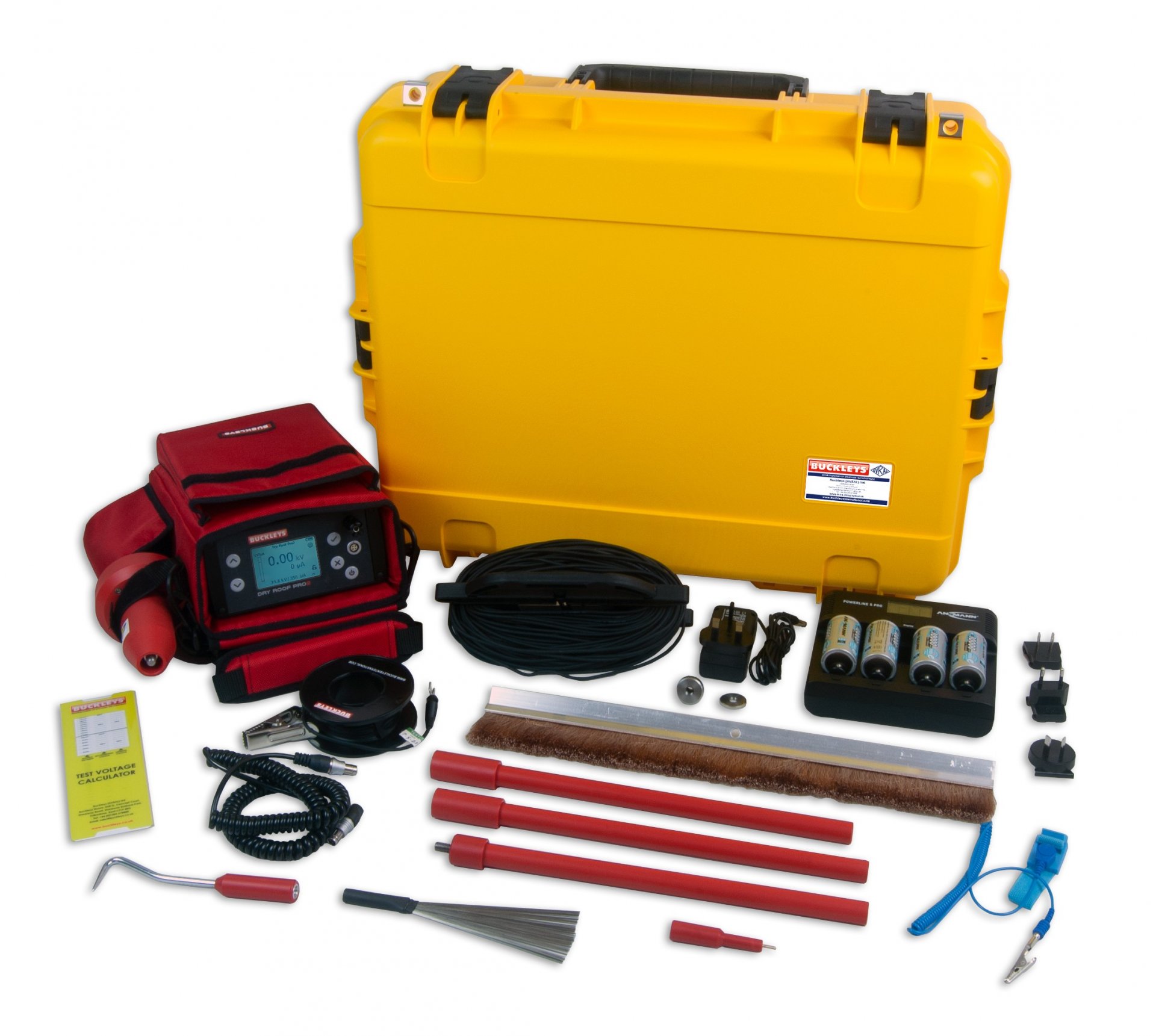

The battery-powered flat-roof leak tester for dry weather donditions provides the complete testing sytem in a and carring casee. Immediately noticeable are the compact control and display unit, designed to be carried over the shoulder in a carry bag, as well as the hand-guided detector unit (copper brush). Equipped in this was - and with the circuit closed via cables - up to 2,000 m² can be tested per day, according to the importer. This allows the exact location of leaks and defects to be indentified, even when they are not visible to naked eye.
The comprehensive test kit also includes a wide range of useful accessories, including additional electrods specially designed for use in corners and angles. This ensures that even the smallest defets are detected, such as poorly executed sems, leaking connections, cuts, and even capillaries that draw in water almost inivisibly.
With the PD240 Pro 2 dry leak detection device, HERZ once again proves itself to be an innovative supplier of flat-roof solutions, expanding its range of roof welding equipment to the benefit of roofing contractors.
